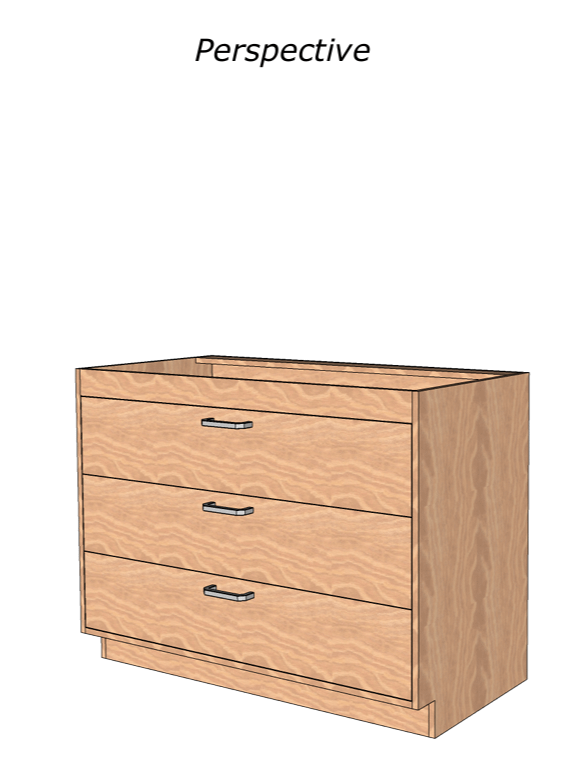

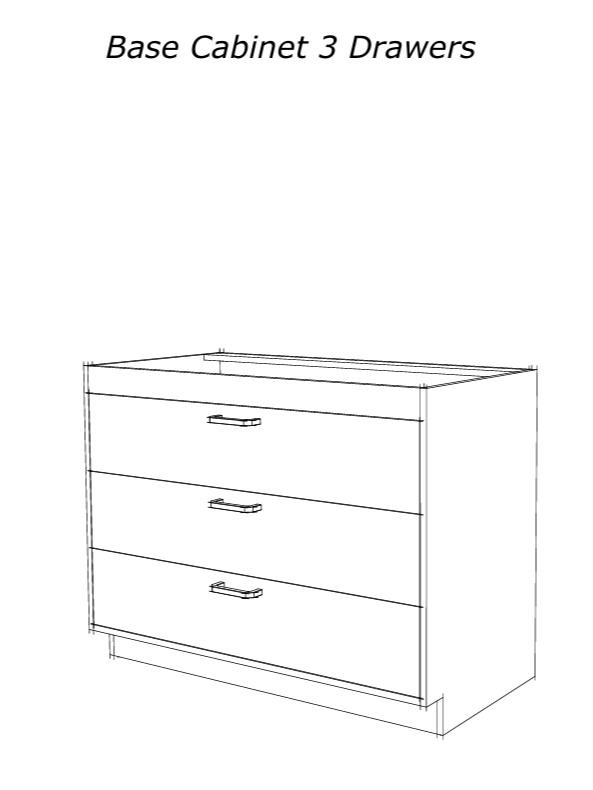

Upgrade your workshop with this heavy-duty 3-drawer base cabinet, engineered to give you huge storage capacity, smooth-running drawers, and a clean, professional finish. These downloadable plans include everything you need to build a strong and reliable cabinet from three sheets of 18mm plywood, complete with full-size drawers, a comfortable kickboard, and an ultra-rigid carcass design.

If you need deep, accessible storage for tools, accessories, consumables or hardware — this is the cabinet you build.

🧰 What’s Included in the Plans

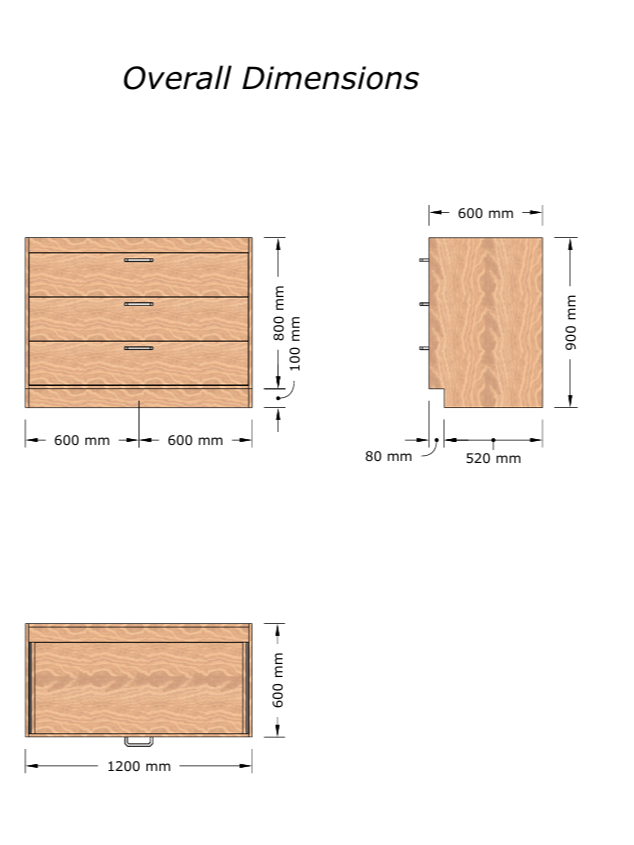

Everything is laid out with crystal-clear diagrams, dimensions, and part labels:

✅ Complete Cut List & Materials

Every panel, drawer part, rail, kickboard, and back panel listed with lengths, widths, thicknesses, and quantities.

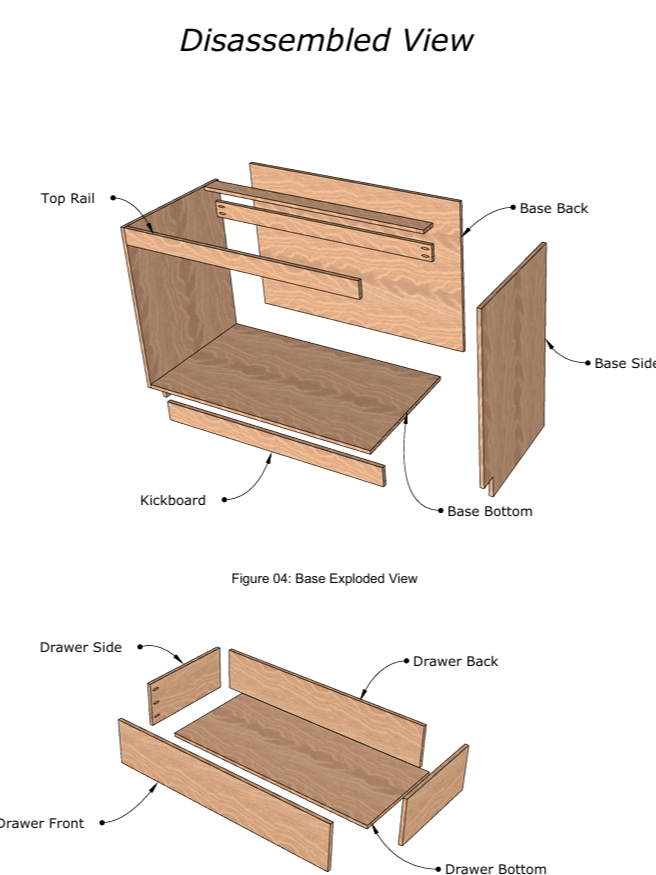

✅ Exploded Views of Both the Cabinet & Drawers

Shows exactly how everything fits together — ideal for visual builders.

✅ 3D Assembly Diagrams

Step-by-step illustrations for the carcass, back panel, kickboard, drawer boxes, runners, and handle placement.

✅ Optimised Cutting Layout

Cut every part from three sheets of 18mm plywood using the illustrated layout - reduces waste and speeds up prep.

✅ Full Drawer Construction Guide

Detailed diagrams for drawer box assembly, pocket hole placement, screw positions, and exact measurements.

✅ Drawer Slide Installation

Clear visual guidance for fitting drawer runners cleanly and evenly.

✅ Kickboard & Structural Notes

Includes the recessed toe-kick for comfortable standing and better ergonomics.

🔨 Why Build This Cabinet?

• Massive Storage Capacity

• Smooth + Reliable Drawer Action Designed for standard 500mm runners.

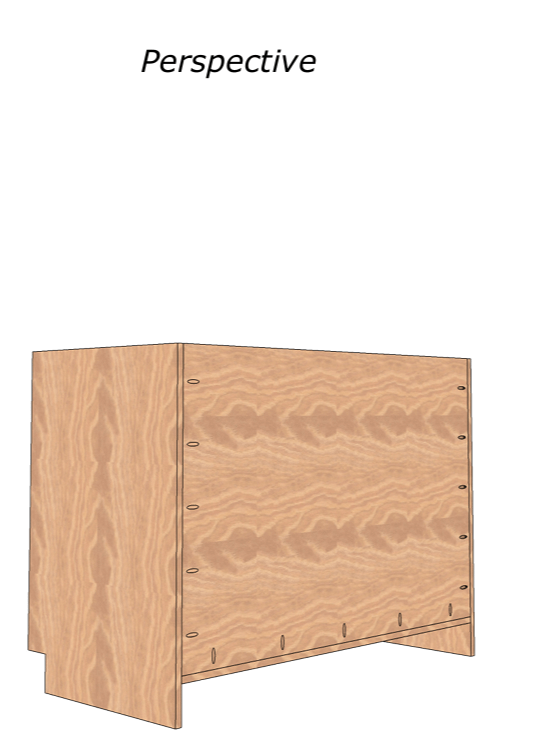

• Strong, Rigid Carcass
  With wide rails, full back panel, and precise pocket-hole construction.

  Comfortable to Use
  Integrated kickboard helps create a true “kitchen-cabinet feel”

• Clean, Modern Aesthetic
  Matching drawer fronts, concealed fixings, and optional handle placement.

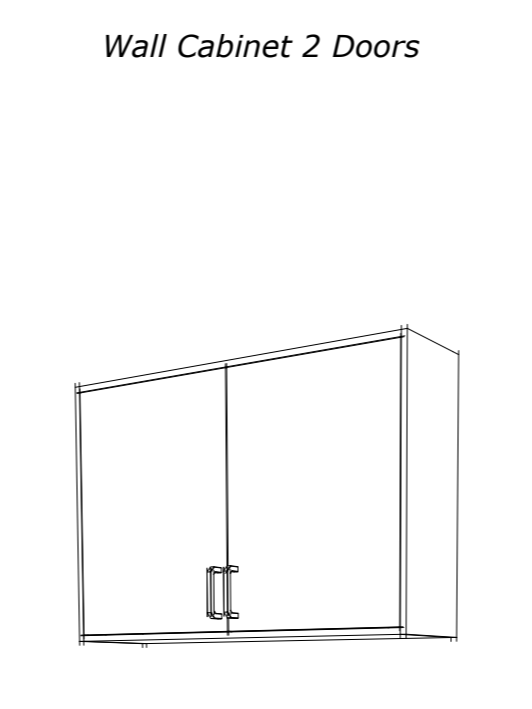

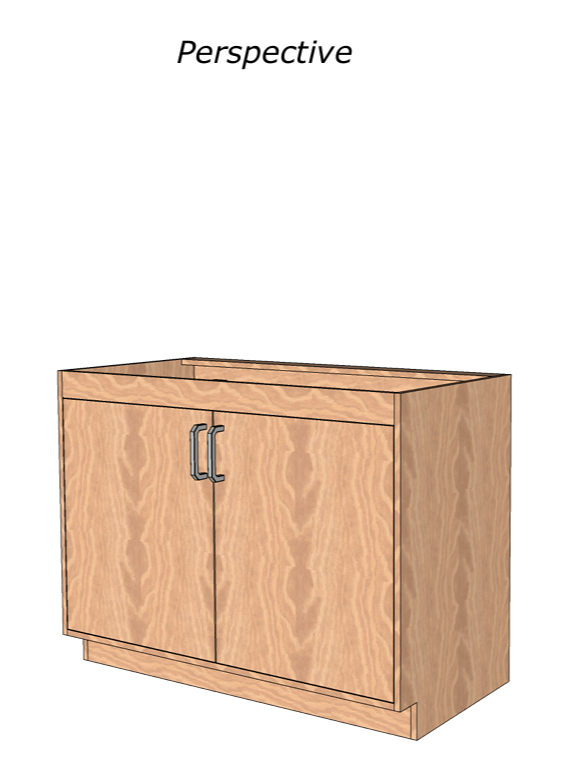

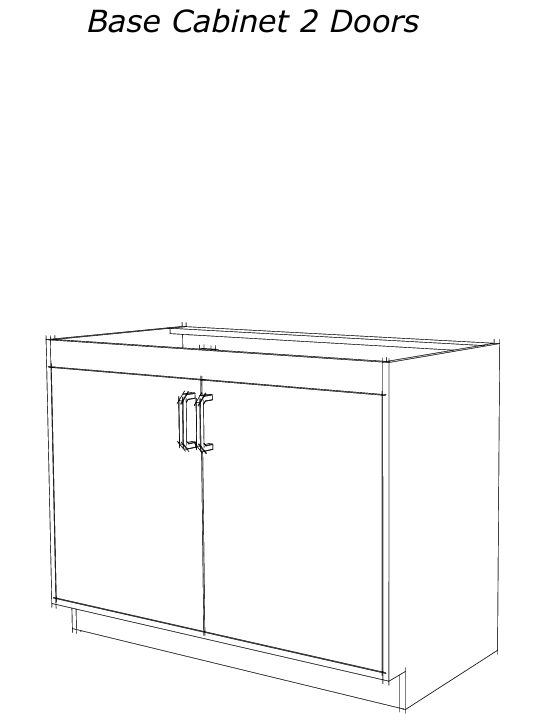

• Perfect Match to Your Wall + Door Base Cabinets
  Complete the full workshop system.

🚀 Build a Workshop You’re Proud Of

Whether you’re organising tools, storing hardware, or building a matching set of modular workshop cabinets, these plans make it easy, accurate, and enjoyable. Follow the drawings, cut the parts, and you’ll have a rock-solid storage unit you can rely on for years.

👉 Download the plans instantly and start building your 3-drawer base cabinet today.
